SSO access using internal TIB, SAML & OKTA

These instructions will guide you through setting up a SAML-based SSO Tyk-Dashboard access using the internal TIB and Okta as an IDP.

Requirements

• An Okta developer account

Configure Tyk Internal TIB

On the Tyk dashboard, go to identity management and click on create profile. Next, on the create new profile page, switch to Raw Editor and remove all json.

Below includes an example of a working profile configuration that will help create your own TIB profile.

• Copy and paste into raw settings, and make the necessary changes to reference your environment, ID, Org-ID, URLs, etc.

Raw Settings

{
"ID": "saml-sso-dash",   <--Application ID
"Name": "",
"OrgID": "612fc4695653740001a14f9b",
"ActionType": "GenerateOrLoginUserProfile",
"MatchedPolicyID": "",
"Type": "redirect",
"ProviderName": "SAMLProvider",
"CustomEmailField": "",
"CustomUserIDField": "",
"ProviderConfig": {
"CertLocation": "Your cert ID",
"FailureRedirect": "https://immense-injoke-adm.aws-usw2.cloud-ara.tyk.io/?fail=true",
"ForceAuthentication": false,
"IDPMetaDataURL": "https://dev-34708156.okta.com/app/exk2vs2vm01oU4SFj5d7/sso/saml/metadata",
"SAMLBaseURL": "https://immense-injoke-adm.aws-usw2.cloud-ara.tyk.io",
"SAMLEmailClaim": "NameID",
"SAMLForenameClaim": "Fname",
"SAMLSurnameClaim": "Lname"
},
"IdentityHandlerConfig": {
"DashboardCredential": "Your dashboard credentials"
},
"ProviderConstraints": {
"Domain": "",
"Group": ""
},
"ReturnURL": "https://immense-injoke-adm.aws-usw2.cloud-ara.tyk.io/tap",
"DefaultUserGroupID": "",
"CustomUserGroupField": "",
"UserGroupMapping": {}
}

Note: The CertLocation refers to the certificate ID generated from a certificate you will

           upload to the Tyk Dashboard -> Certificates. However, before uploading to the dashboard, the

           certificate and private key must be in one file with the certificate and private key concatenated.

           See the example below.

openssl req -x509 -newkey rsa:4096 -keyout key.pem -out cert.pem -days 365 -nodes

cat cert.pem key.pem >> combine_cert.pem

See VIdeo for instructions on how to upload a certificate to the tyk-dashboard and apply it to the tib profile.

Configuring Okta

Step: 1

• Once signed into Okta with your dev account, in Applications, click on create App Integration

• Next select SAML 2.0 and click Next.

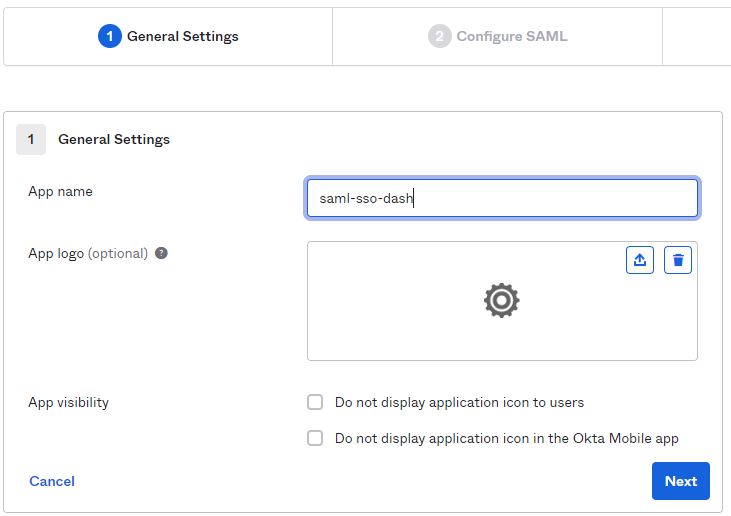

• In General settings, add an App name, and click next.

Step:2 -  Configure SAML

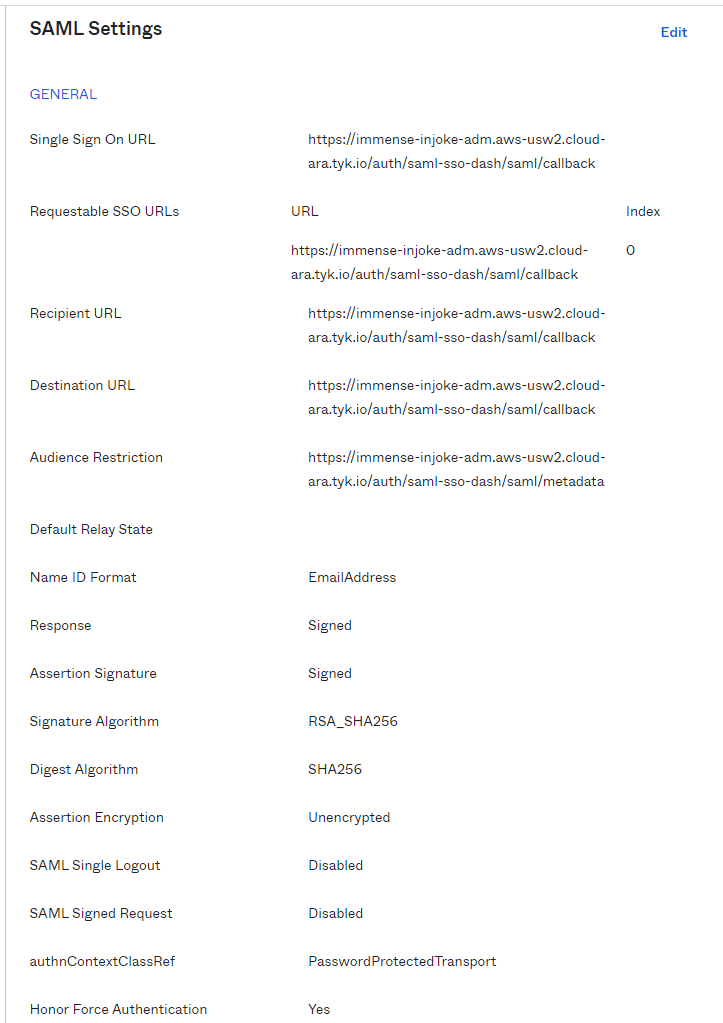

In Saml settings, use the example below to help add your tyk-dashboard URLS in the required fields.

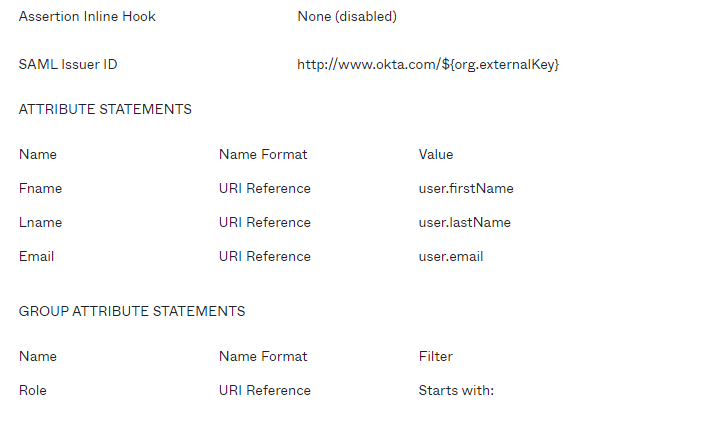

Next, mirror the  ATTRIBUTES STATEMENTS below; you must map them to the claim fields in the TYK TIB profile (see the profile above).

SAMLEmailClaim -> Email

SAMLForenameClaim -> Fname

SAMLSurnameClaim  -> Lname

Once finished configuring Okta Saml, click next.

Note: For more information on SAML and fields please refer to Link

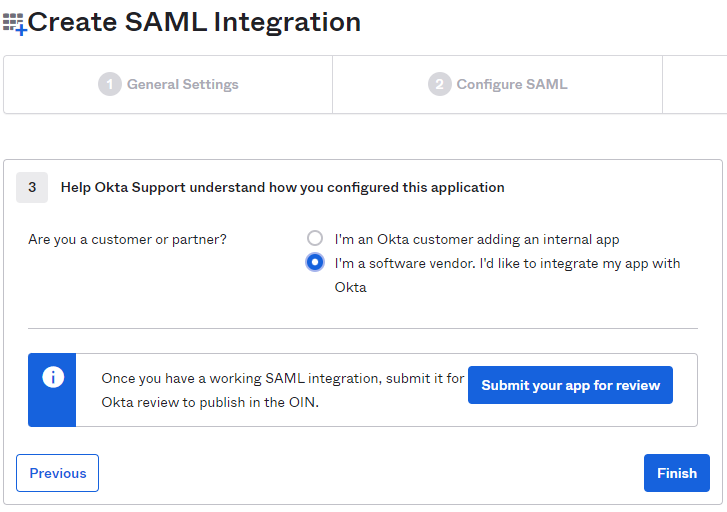

3:  Feed Back

     Click Finish

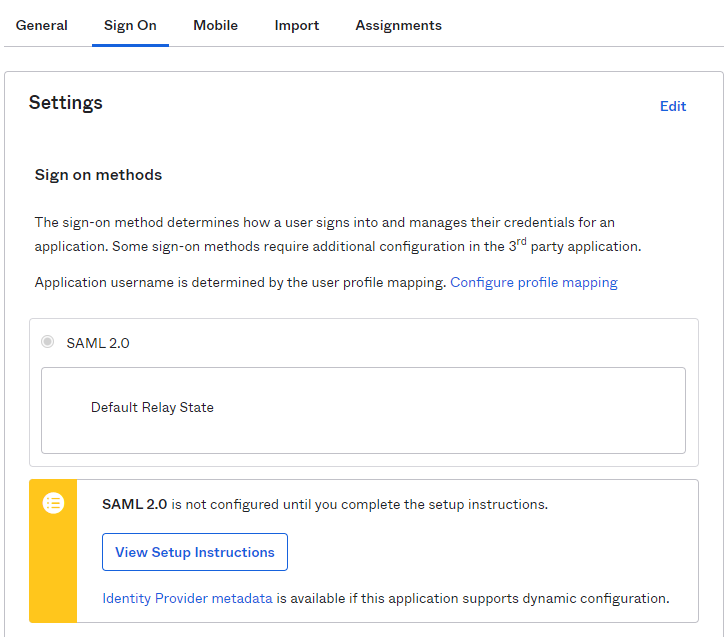

After creating the Okta SAML application, navigate to the Sign On tab, click on the Identity Provider metadata link.

Copy the URL link from the browser's address bar and map to the IDPMetaDataURL field in the Tyk TIB profile.

Finally Test SSO -

https://immense-injoke-adm.aws-usw2.cloud-ara.tyk.io/auth/saml-sso-dash/SAMLProvider

https://Your dashboard url/auth/your application id/SAMLProvider
